How to Choose the Right Industrial Slide Rails? 3 Key Parameters for Beginners to Know

1.Load Capacity: Selecting the Right "Strength" is Key
This is the first essential factor in the selection process. The "strength" of the slide rail directly determines how much weight it can bear.
● Dynamic Load vs Static Load:
○ Dynamic Load refers to the weight that the slide rail can bear while in motion. If your equipment requires frequent pushing and pulling (such as tool drawers, equipment trays), this value must be taken into consideration.
○ Static Load refers to the weight that the slide rail can bear when it is retracted and locked (such as supporting the equipment base).
● How to Choose:
○ Light Load (< 50kg): Suitable for keyboard trays, lightweight storage, display stands. A thick track is not necessary as it won't occupy too much space.
○ Medium to Heavy Load (50kg - 200kg+): Suitable for server cabinets, heavy tool cabinets, industrial robot bases. Heavy-duty slide rails with thick steel plates or double-row ball bearings must be selected.

2. Material and Environmental Adaptability: Resistance to Rust and Wear
The material of the sliding rail determines in what environment it can "survive".

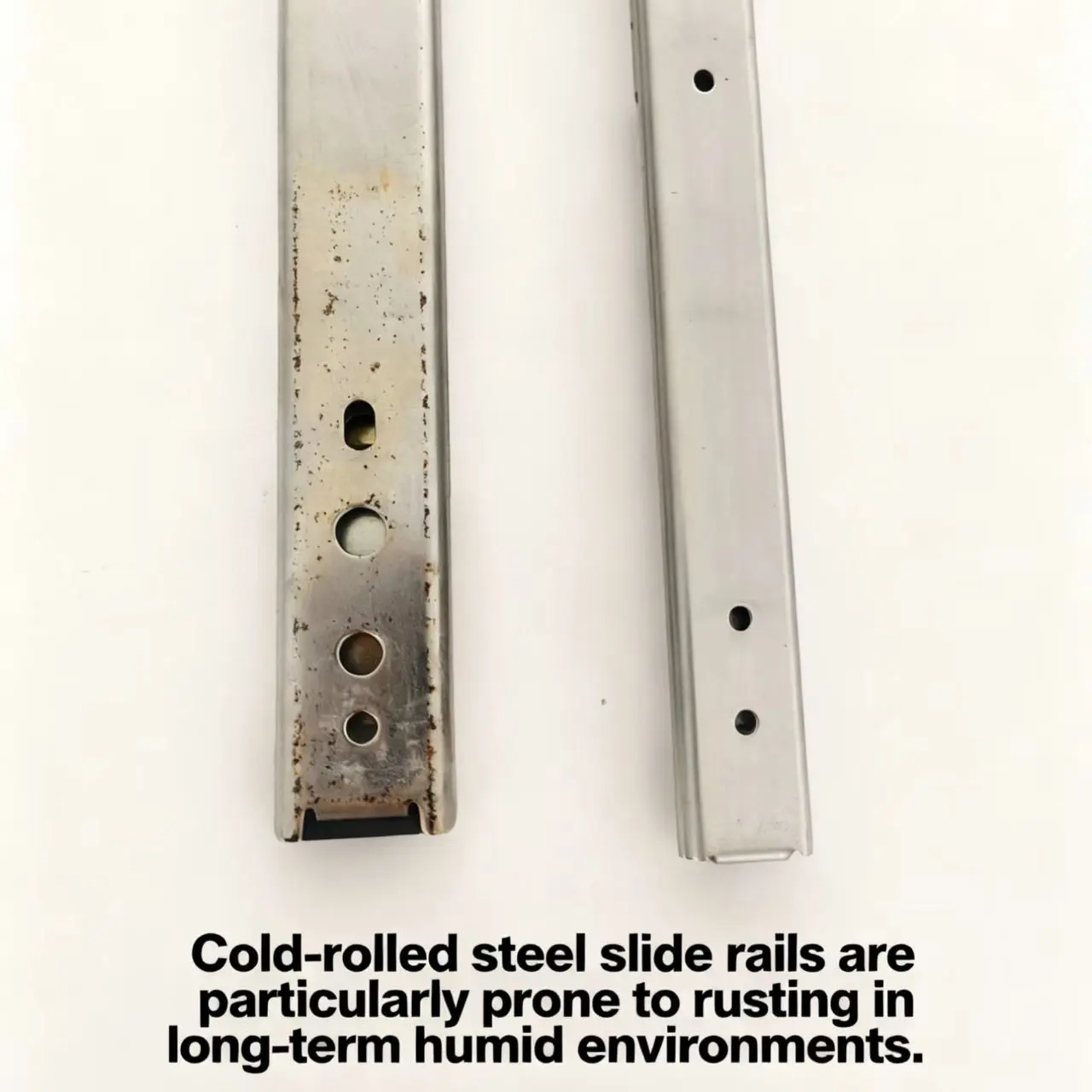

● Cold-rolled steel sliding rail: Low cost, strong load-bearing capacity, but poor rust resistance. Suitable for use in dry, indoor environments (such as ordinary tool cabinets).
● Stainless steel sliding rail: Excellent corrosion resistance, shiny surface, and not prone to rust. Highly recommended for use in kitchens, laboratories, hospitals, coastal areas, or high-humidity environments.
● Surface treatment: If choosing an ordinary steel sliding rail, pay attention to whether there is electroplating, powder coating, or blackening treatment, which can effectively delay rust.

3. Dimensions and Installation Space: Perfect Fit
"Can't install it after buying" is the most common mistake made by beginners. Before placing an order, make sure to measure three dimensions:
● Width: The width of the sliding rail usually determines its thickness and strength. Common sizes include 16mm, 20mm, 27mm, 38mm, 53mm, etc.
● Length: The length of the sliding rail determines the distance the drawer can be pulled out. It is generally recommended that the length of the sliding rail be at least 100mm longer than the depth of the drawer to ensure travel and stability.
● Installation holes: The spacing of the holes for different brands of sliding rails may vary. If replacing an old sliding rail, it is best to bring the old rail for comparison or measure the center distance of the installation holes precisely.

Practical Case: How to Recommend Based on Parameters?
To help you understand more intuitively, we combine the above parameters and recommend a model of sliding rail that is very popular in modern light industrial scenarios:
Model Recommendation: SS1620PT Lightweight Stainless Steel Sliding Rail
● Parameter Matching Analysis:
○ Load Capacity (Parameter 1): Although this sliding rail is narrow in width, it can support a load of 30kg. For keyboard trays, small storage drawers, or display stands, this "strength" is more than sufficient, and it runs stably without shaking.
○ Material Characteristics (Parameter 2): It is made of high-quality stainless steel. It not only solves the problem of ordinary sliding rails being prone to rust, but also has excellent corrosion resistance. Whether facing kitchen fumes or laboratory humidity, it can remain smooth as new.
○ Size Specifications (Parameter 3): The 20mm narrow edge design perfectly meets the decoration requirements of modern minimalist industrial style. It doesn't take up space, is flexible to install, and the internal system uses a precise ball bearing system, making the pushing and pulling process quiet and smooth.

The recommended SS1620PT slide rail, as mentioned above, is from Truslider.

Truslider is a professional provider of linear motion systems. We not only offer standard stainless steel slides and cold-rolled steel slides, but also focus on providing customized slide solutions for fields such as aerospace, medical equipment, and automated machinery.
From micro precision slides to heavy-duty load-bearing tracks, Truslider is dedicated to using high-performance products to help your equipment achieve smoother and more durable operation.
